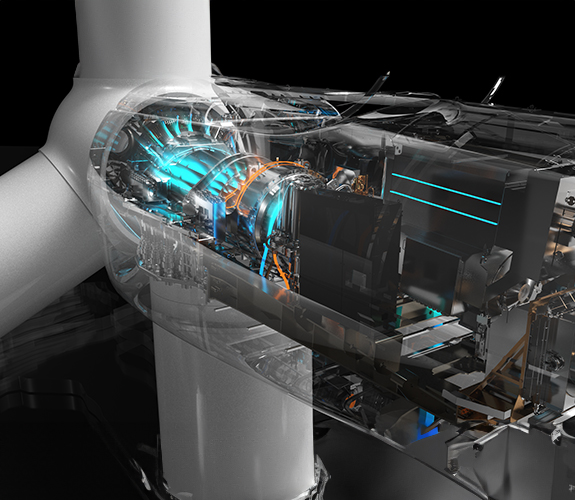

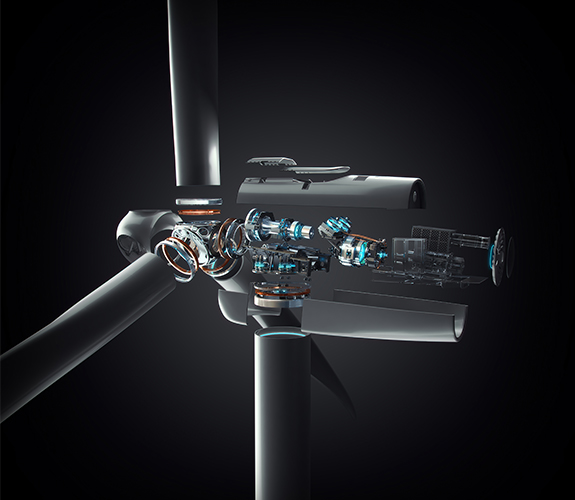

Envision is the first in the industry to develop smart turbines that combine advanced control systems, data analysis, active performance control, and reliability prediction capabilities. Through this ‘digital twin’, our turbines have an understanding of real-time status down to the component level, and a deep understanding of environmental conditions. This ‘software defined’ approach extends from design through deployment, resulting in a turbine with increased effectiveness and longer service life.
| Basic Parameters | |
|---|---|
| Rated Power | 3300 KW |
| Design class | IEC S |
| Cut-in wind speed | 3m/s |
| Cut-out wind speed | 25m/s |
| Maximum wind speed(10min) | 40m/s |
| Design lifetime | 20 years |
| Rotor | |
|---|---|
| Rotor diameter | 156m |
| Swept Area | 19113m2 |
| Pitch System | Electrical pitching |
| Generator | |
|---|---|
| Generator type | Doubly fed induction |
| Rated Voltage | 950V |
| Converter | |
|---|---|
| Type Three level power converter | Type3 (IEEE) |
| Frequency | 50Hz |
| Rated output voltage | 950V |
| Gearbox | |
|---|---|
| Type | 3 stages transmission |
| Braking system | |
|---|---|
| Main braking system | Aerodynamic braking |
| Secondary braking system | Hydraulic braking |
| Tower | |
|---|---|
| Tower type | Steel Tubular or Hybrid Tower (Optional) |
| Hub Height | 120m / 140m |
| Basic Parameters | |
|---|---|
| Rated Power | 5000 KW |
| Design class | IEC S |
| Cut-in wind speed | 3m/s |
| Cut-out wind speed | 25m/s |
| Maximum wind speed(10min), Verf | 57m/s |
| Design lifetime | 25 years |
| Derating temperature | 50°C |
| Rotor | |
|---|---|
| Rotor diameter | 181.1m |
| Swept Area | 25759m2 |
| Pitch System | Electrical pitching |
| Generator | |
|---|---|
| Generator type | Doubly fed induction |
| Rated Voltage | 1140V |
| Converter | |
|---|---|
| Type Three level power converter | Type3 (IEEE) |
| Frequency | 50Hz |
| Rated output voltage | 1140V |
| Gearbox | |
|---|---|
| Type | 3 stages transmission |
| Braking system | |
|---|---|
| Main braking system | Aerodynamic braking |
| Secondary braking system | Hydraulic braking |
| Tower | |
|---|---|
| Tower type | Steel Tubular or Hybrid Tower (Optional) |
| Hub Height | 130m / 140m |
| Basic Parameters | |
|---|---|
| Rated Power | 14000kW |
| Design class | IEC S |
| Cut-in wind speed | 3m/s |
| Cut-out wind speed | 25m/s |
| Maximum wind speed(10min), Verf | 57m/s |
| Design lifetime | 25 years |
| Rotor | |
|---|---|
| Rotor diameter | 252m |
| Swept Area | 49876m2 |
| Pitch System | Electrical pitching |
| Generator | |
|---|---|
| Generator type | Permanent magnet medium speed |
| Rated Voltage | 1140V |
| Converter | |
|---|---|
| Type | Full scale power |
| Frequency | 50Hz |
| Rated output voltage | 1140V |
| Gearbox | |
|---|---|
| Type | 3 stages transmission |
| Braking system | |
|---|---|
| Main braking system | Aerodynamic braking |
| Secondary braking system | Hydraulic braking |
| Tower | |
|---|---|
| Tower type | Steel Tubular |
| Hub Height | 146m / site specific |
| Basic Parameters | |
|---|---|
| Rated Power | 8500 KW |
| Design class | IEC S |
| Cut-in wind speed | 3m/s |
| Cut-out wind speed | 25m/s |
| Maximum wind speed(10min) | 57m/s |
| Design lifetime | 25 years |
| Rotor | |
|---|---|
| Rotor diameter | 226m |
| Swept Area | 40115m3 |
| Pitch System | Electrical pitching |
| Generator | |
|---|---|
| Generator type | Doubly fed induction |
| Rated Voltage | 1140V |
| Converter | |
|---|---|
| Type | Partial power |
| Frequency | 50Hz |
| Rated output voltage | 1140V |
| Gearbox | |
|---|---|
| Type | 4 stage transmission |
| Braking system | |
|---|---|
| Main braking system | Aerodynamic braking |
| Secondary braking system | Hydraulic braking |
| Tower | |
|---|---|
| Tower type | Steel Tubular |
| Hub Height | 131m / site specific |

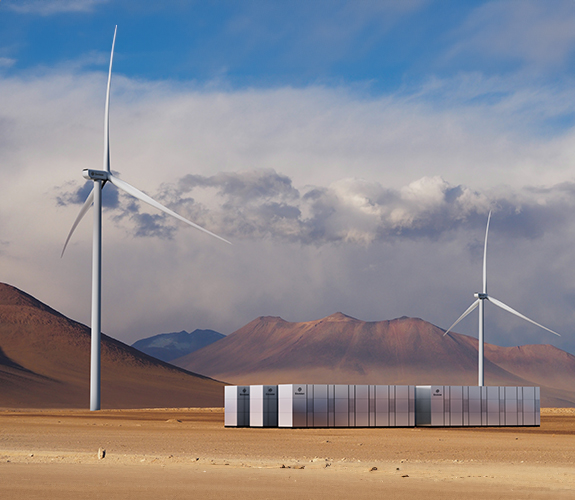

Envision’s liquid cooling Smart BESS products are designed and tested using in-house R&D capabilities. We combine nearly 20 years of experience in wind turbine electrical systems and grid integration with global team of experts to fully optimize energy storage products and systems – from the cells to product design, control systems and interfaces, through to lifetime operations.
Envision always ensures quality and safety is at the forefront of all decisions.
As the demand for BESS accelerates across the world, Envision is continuously developing and improving products and services to ensure together we can bring solutions to the industry whilst meeting client’s technical, environmental, social and economic challenges.
| Existing capacity in operation | 60 GWh |
| Capacity by 2026, powered by net-zero energy | 400+ GWh |
| Experience in EV battery | 15 Years |
| Critical accidents | 0 |

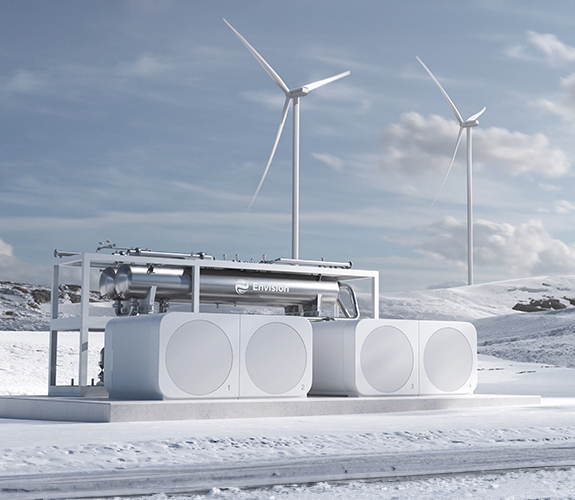

Green hydrogen is a key accelerator for industrial decarbonization and low-cost renewable energy storage. Envision Energy is a world-leading green hydrogen producer and the only company that can provide integrated hydrogen value chain, including Renewable Energy System and hydrogen production equipment within Envision’s net-zero industrial park.
Envision Hydrogen Provides a Complete Set of Turn-key Solutions, Including Renewable Energy Digital Capability and Green Energy Carrier Production Solutions.

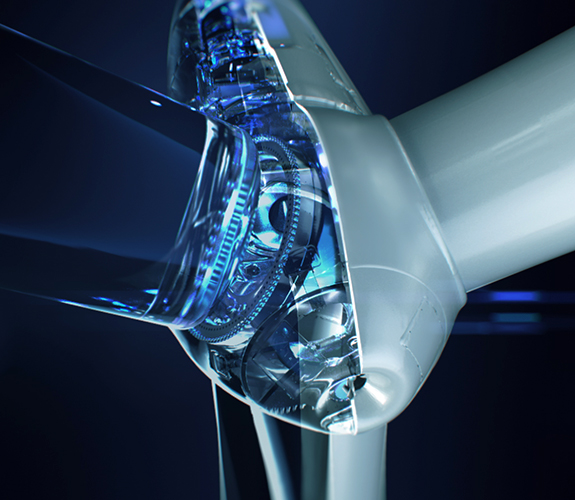

Enable wind turbines to see through component life, accurate diagnosis and active prevention.
Help cluster collaboration optimal, collaborates with power forecast and ESS.
Help cluster self-learning and self-evolving.
